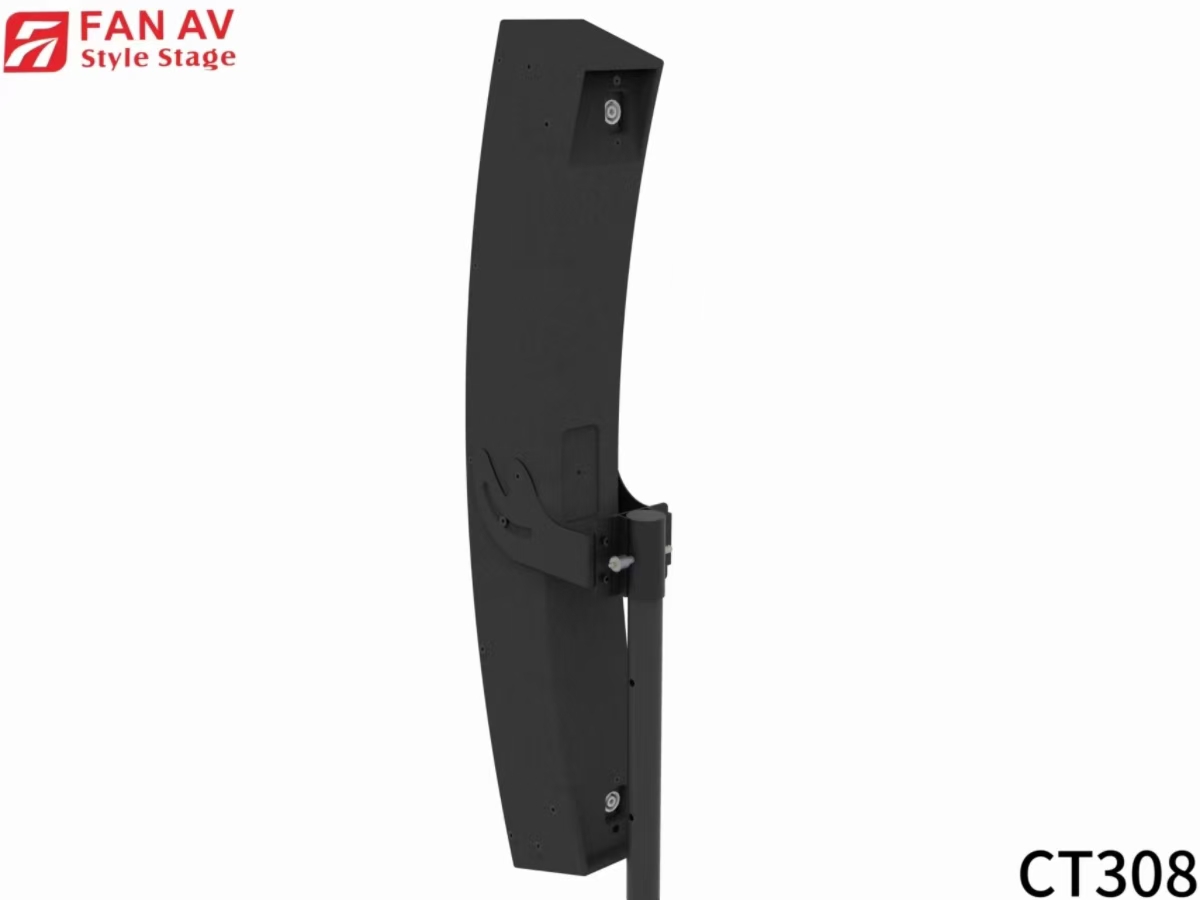

CT 308

Product description

Model	CT308+S500A sound reinforcement system
Product Specifications	Arc Array Speakers
Frequency Response	no worse than 120Hz-18KHz(-10dB)
Coverage characteristics	horizontal 100°~120°:vertical 30°
Maximum sound pressure level	greater than 129dB
Rated Power (RMS)	320W
Unit specifications	8x3-inch neodymium drivers + 2x 3-inch passive amplifiers
Dimensions	height not greater than 1000 mm; width not greater than 120 mm
Weight (Kg)	7KG

Product Specifications	15-inch active subwoofer
Frequency Response	35Hz-320Hz(-10dB)
Maximum sound pressure level	125dB/131dB(peak)
Rated Power (RMS)	800W
Unit specifications	Low frequency 1x 15-inch 220 magnetic driver
Nominal impedance	8 ohms
Digital processor specifications	2 in and 4 out
Amplfier module (A channel)	600W/8Ω
Amplifier module (B channel)	1x1400W/8Ω
Power input	220V/50Hz
