Product description

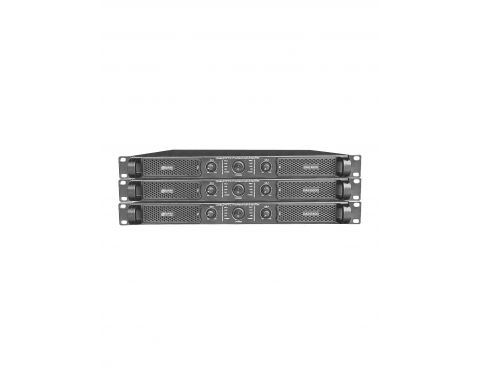

DA series amplifier is a professional switching power amplifier with high power, which is designed for large-scale tour shows. The power of this amplifier is supplied by PFC+SMPS universal voltage
plus a regulated power. The amplifier module adopts Class-D technology to perfectly match. Each channel has independently adjustable rated output power voltage, so that the amplifier can drive
speakers of different power levels very conveniently. This DA series is one of the benchmark products in the application of large-scale touring sound reinforcement system. The DA series has 6
power levels and is suitable for large-scale performances, venues, commercial high-end entertainment clubs and other places. It is the first choice in audio engineering!
International standard 1U/44MM height design.
Using Class-D power amplifier module design from high-efficiency American IXYS field effect tube.
PFC+SMPS-Universal voltage + regulated power supply.
Adopting the most advanced audio-grade electronic components devices, new discrete component plug-in + SMD chip process design.
The rear panel VCL has independently adjustable rated output power voltage, and each model can adjust 4 kinds of power.
The connection mode of the rear panel selects stereo/parallel connection.
The whole device has intelligent all-round protection functions.
XLR female input/male output signal connection socket.
Speakon Nl4 output socket.
The power cord is designed with a detachable spiral speaker base with lock, which is stable and reliable.
Independent channel power indicator and signal indicator/overload indicator/fault indicator and 2-way level controller + LCD digital display on the front panel, the voltage and temperature are clear at a
glance.
A special low-noise and high-volume 4030 fan is used as a cooling system.
The detachable net cover is designed for easy maintenance and longer life.
| Model | DA2-800 | DA2-1000 | DA2-1400 | DA2-1800 | DA2-2200 |
| 8Ω Stereo Power | 800W×2 | 1000W×2 | 1400W×2 | 800W×2 | 2200W×2 |
| 4Ω Stereo Power | 1200W×2 | 1500W×2 | 2100W×2 | 2700W×2 | 3300W×2 |
| 2Ω Stereo Power | 1400W×2 | 1700W×2 | 2400W×2 | 3060W×2 | 3750W×2 |
| Frequency response | |||||
| THD+N | <0.1% | ||||
| S/N rate | 110dB | ||||
| Damping factor | >500 | ||||
| Crosstalk | ≥70dB | ||||
| Slew rate | >20V/μs | ||||
| Input sensitivity | 1.0V/35dB | ||||
| Input impedance (bal/unbal) | 20kΩ/10kΩ | ||||
| Output circuitry | Class D | ||||
| Cooling | Air flow from front to rear | ||||
| Input Connector | XLR 3pin-XLR | ||||
| Output Connector | Speakon Nl4 Output socket& touch-proof binding posts | ||||
| Front pane indictorl | Power / SIG / clip / Protect indicator | ||||
| Front panel | Power switch / Volume control | ||||
| Rear panel | Operation mode / Input sensitivity | ||||
| Product dimension(mm) | 483×310×44 | ||||
| Packing dimension(mm) | 565×550×14 | ||||
| G.W. | 6kg | 6.25kg | 6.3kg | 7kg | 7.5kg |
| Power | AC220V/50Hz,±10% | ||||
