FA-110 / FA-110P (active)is a line array consists of one 10" Neodymium LF, one 3" Neodymium HF compression drivers. It's specialized in high-performance and low-distortion compression driver with innovative horn design of waves phase philosophy. Each enclosure is equipped with rigging system, ensure line array system to be constructed rapidly and safely. FA-110 / FA-110P is very versatile and scalable for a wide range of applications in mobile performances, corporate and fixed installation venues.
Model | FA-110 & FA-110P(active) |
Type | Line array system |
Frequency Response | 65Hz-18KHz±3dB |
Power handling | LF 300W(RMS)600W(PEAK) |
HF 160W(RMS)320W(PEAK) | |
Max@S. P.L | LF 130dbSPL peak |
HF 138dbSPL peak | |
Sensitivity | LF 100dbSPL |
HF 113dbSPL | |
Nominal impedance | 16 ohm |

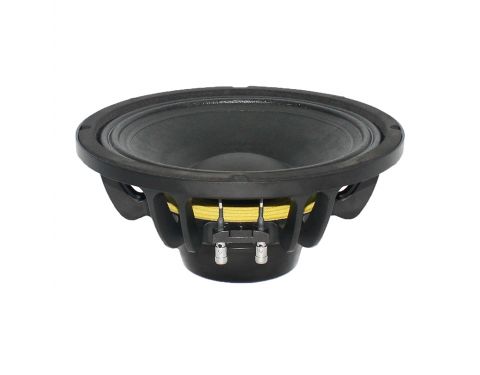

LF section | 1×10" Neodymium LF |

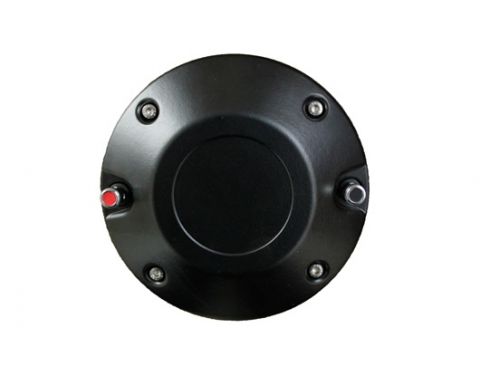

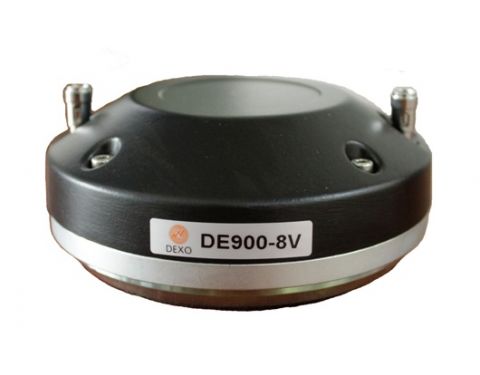

HF section | 1×3" Neodymium HF |
Nominal impedance | 16ohm |
Qutput section... | 2-channel |
Dispersion pattern | 110°H×15°V |
Paint | Black wearproof polyurea paint |
Speaker cables | 1(+)1(-) 2(+)2(-) |
Input connectors | 2×NL4MP speakon ( LF±1 HF±2) |
Dimensions | 630×300×460mm(W×H×D) |
Enclosure | 15/18mm Birch Plywood |
Gross weight | 23kg |
